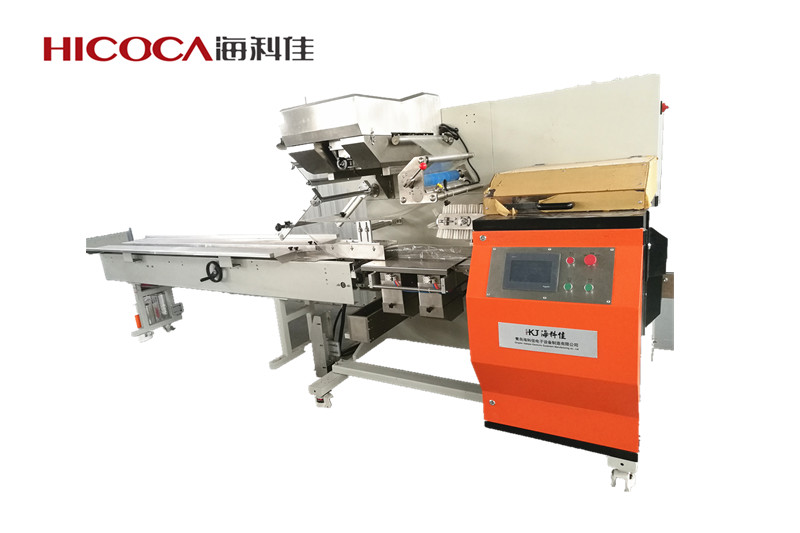

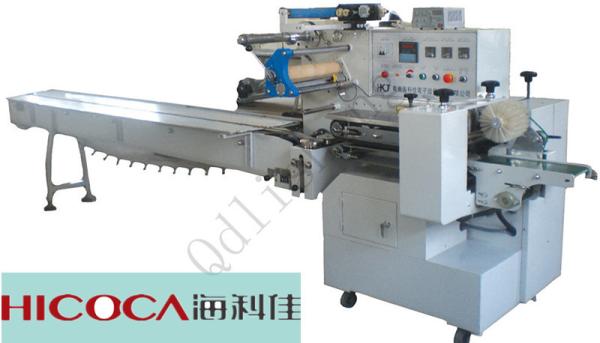

Automatic Upper Film Feeding Gusset Bag Pillow Packing Machine
1> With Omron PLC and touch screen
2> With Magic Eyes tracing
3> With Servo motors controlling
1,Horizontal Sealer, finish the package sealing and cutting
2,Vertical sealer:Via Adjusting pressure and temperature to seal the package
3,M-shape forming,according to different package size, to adjust the data of the position diaplayer
4,Film Feeding,according the color mark to adjust the film flatness
5,Upper and Under carrying belt, to convey the package steadily between horizontal and vertical sealer.
| Package | Pillow Pack | | packing rate | 20-80 bags/min | | Film Width | 150-580mm | | Film Material | OPP,CPP | | Film Thickness | 0.07-0.08mm | | Max Film Roller Dizmeter | 350mm | | Package Length | 80-400mm | | Package Width | 80-260mm | | Package Height | 20-65mm | | Voltage | 220V/50HZ | | Total Power | 7KW | | Gas Consumption | 6 kg/sp.cm | | Air Pressure | 0.7 Mpa | | Equipment Size | 6000*1500*1700mm | |
1. M-shape forming:compared with the traditional packing machine,M-shape packing machine realizing the process from film M-shape forming to packing automatically,Instead of packing manually, reducing the production cost,improving the work efficiency.
2. Troublr removal: trouble removing automatically,reducing the time wasterts,Maintain easily.
We are a trading and manufacturing combination in Qingdao China, which has been around for 11
years. Automatic noodle/spaghetti packing machines are our advantage products. And we hold about
an 80% share of Chinese noodle packing machine market.
In addition to noodle/spaghetti packing machine, weighing and bundling machine, noodle cutting
machine, snack food packing machine, palletizing machine are supplied too.
We are committed to providing customers with a set of solutions for intelligent food production and
packaging assembly line.
